I recently bought an ATmega8a microcontroller for making a simple project. Modern microcontrollers by default come with a bootloader burned. Thus, we don’t have to hassle with those such as ESP32 or Arduino Nano. To burn a bootloader we could use something call an AVR Programmer, but these are so expensive!

Better we get an arduino nano and use that as an isp programmer.

Necessary components

  • ATmega8a
  • Arduino Nano
  • Breadboard
  • Jumper wires
  • 16 Mhz Crystal Oscillator
  • 22pF Capacitor (2x)
  • LED and 220 ohm resistor (Optional)

Wiring

Arduino Nano Pin ATmega8A Pin Function
D10 Pin 1 (RESET) RESET
D11 Pin 17 (MOSI) MOSI
D12 Pin 18 (MISO) MISO
D13 Pin 19 (SCK) SCK
5V Pin 7 (VCC) & Pin 20 (AVCC) Power
GND Pin 8 (GND) & Pin 22 (GND) Ground

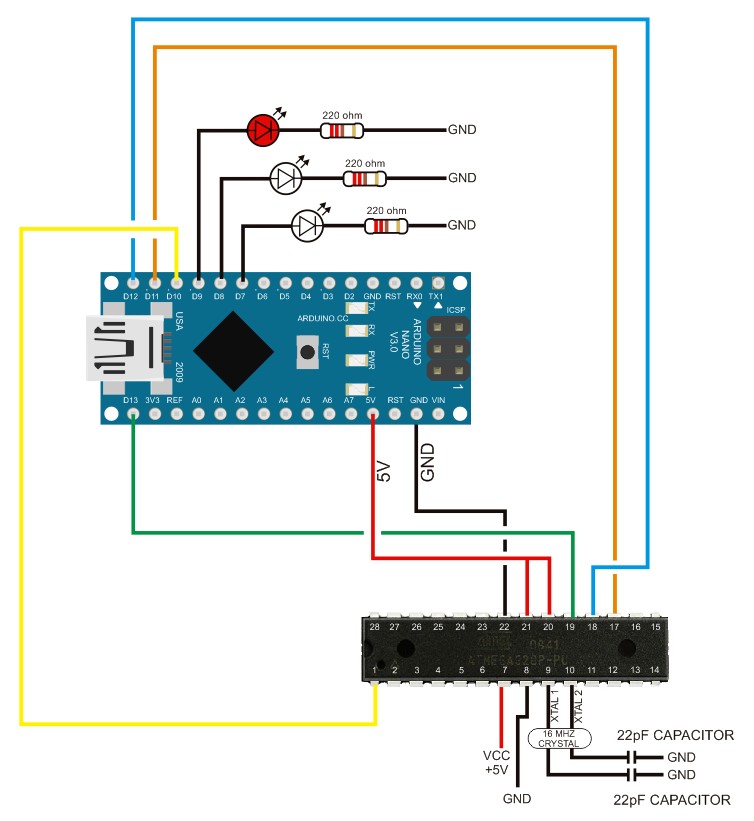

Wiring Image

Step - 1

  • Import MiniCore to Arduino IDE.
  • Install MiniCore from board manager in Arduino
  • Setup Arduino according to the wiring diagram

Step - 2

  • Open ArduinoISP file from ‘Files > examples > ArduinoISP’ in IDE
  • Upload that program to Arduino Nano

Step - 3

  • Set Board: MiniCore>ATmega8
  • Set the Arduino port
  • Set Programmer: Arduino as ISP
  • Hit Burn Bootloader

Step - 4

  • Write your desire code for uploading to the ATmega8a
  • Select Sketch > Upload using programmer

Common Errors

Error 1

Warning: attempt 1 of 10: not in sync: resp=0x15
Warning: attempt 2 of 10: not in sync: resp=0x15

Error: protocol expects OK byte 0x10 but got 0x14
Error: cannot obtain SW version
Error: initialization failed  (rc = -3)
 - double check the connections and try again
 - use -B to set lower the bit clock frequency, e.g. -B 125kHz
 - use -F to override this check
Error: protocol expects sync byte 0x14 but got 0x01
Failed chip erase: uploading error: exit status 1
  • Check whether the wiring is correct and connections fine or not using a multimeter.
  • Check correct board and port is selected or not.
  • Hold Arduino Nano Reset button manually for a second, after hitting burn bootloader/Upload Using programmer.

Error 2

Error: expected signature for ATmega8 is 1E 93 07 - double check chip or use -F to carry on regardless Failed programming: uploading error: exit status 1
  • Put pressure on ATmega8a with your fingers so that the pins are set perfectly on the breadboard.
  • If still it fails then keep holding ATmega8a and try uploading.
